Где посмотреть Serial / Rev. number Guide на Supermicro

System

Rack-mountable systems serial numbers are located on the rear side by the I/O panel.

Embedded system serial numbers are located on the I/O panel.

Motherboard

• The PCB (Printed Circuit Board) revision number is a tiny print on the motherboard below the motherboard model name. (See boxed area in image below.)
• The serial number is located below the bar code on the sticker that contains the country of manufacture, i.e. Made in...

Chassis

Rack-mountable chassis serial numbers are located on the side of chassis by the sliding rail.

4U Tower chassis serial number stickers are located on the bottom side.

Blade

Blade serial numbers (SBI... or SBA...) are located on the side as shown below:

Blade enclosure serial numbers (SBE...) are located on the rear side:

CMM (chassis management module) serial numbers (SBM...) are located as shown:

Stand-alone switch serial numbers are located on the I/O side:

Power Supply

Serial and part numbers for power supplies:

Location of the sticker may differ (left or right side):

BIOS / IPMI

BIOS revision numbers are shown on the first boot-up display:

AMI BIOS Revision Number:

Phoenix BIOS Revision Number:

Award BIOS Revision Number:

IPMI:

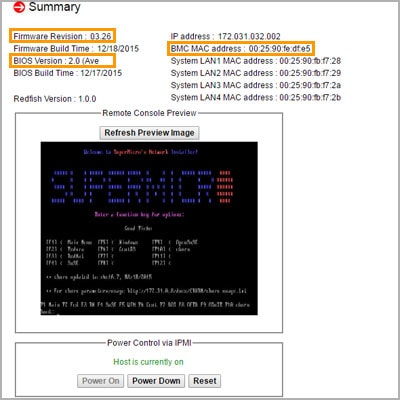

IPMI version and Mac addresses are shown after login to WEBGUI's display:

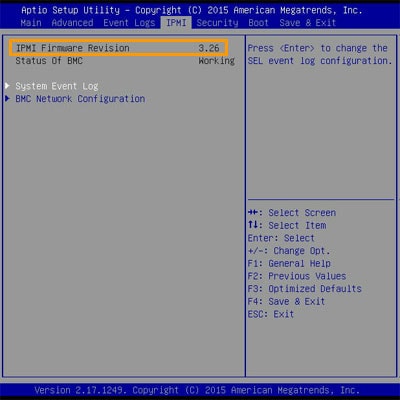

IPMI version showing on BIOS screen display:

Others

(CPU, Memory, HD, HD Backplane, Riser Card, Power Distributor)

Hard drive backplane serial number stickers are located below the product number:

Memory module serial number stickers are located on the right side of the module.

Riser card serial number stickers are located as shown below:

Power distributor serial number stickers are located as shown below:

CPU batch number location.

Hard Drive serial number location.
