Платформа Supermicro 5019S-L по низким ценам в Москве

Контактная информация

Россия, Москва, Варшавское ш., 132, стр. 9, офис 158

Артикул: 003025

Платформа SuperMicro 1U 5019S-L (LGA1151, C232, PCI-E, SVGA, SATA RAID,2xSATA, 2xGbLAN, 4DDR4 200W)

Подробнее

Для физических лиц

63 250 ₽/шт

Для юридических лиц с НДС 5%

63 250 ₽/шт

Нет в наличии

Нашли дешевле?

Под заказ

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Описание

Specifications

Processor

CPU	Single Socket H4 (LGA 1151) supports: Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3 CPU TDP up to 45W, 80W option fan
Note	BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors

System Memory

Memory Capacity	4x 288-pin DDR4 DIMM slots Up to 64GB DDR4 ECC UDIMM
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset	Intel® C232 chipset
SATA	SATA3 (6Gbps) via C232 controller RAID 0, 1, 5, 10 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Dual Intel® I210-AT Gigabit Ethernet LAN ports Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	ASPEED AST2400 BMC

Input / Output

SATA	6 SATA3 (6Gbps) ports
LAN	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 DedicatedIPMI LAN port
USB	5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) 6 USB 2.0 ports (2 rear + 4 headers)
Video	1 VGA port
Serial Port / Header	1 COM port (1 rear)
SuperDOM	2 SuperDOM (Disk on Module) ports with built-in power

PC Health Monitoring

Voltage	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN	Total of 5 fan headers supporting up to 5 fans 4 fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support I2C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	System Information LED Suspend static indicator LED UID/Remote UID
Other Features	Chassis intrusion detection Chassis intrusion header RoHS, Halogen Free

Dimensions and Weight

Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	11.3" (287mm)
Package	6.1" (H) x 25.4" (W) x 19.8" (D)
Weight	Net Weight: 8.45 lbs (3.83 kg) Gross Weight: 12.55 lbs (5.69 kg)
Available Colors	Black

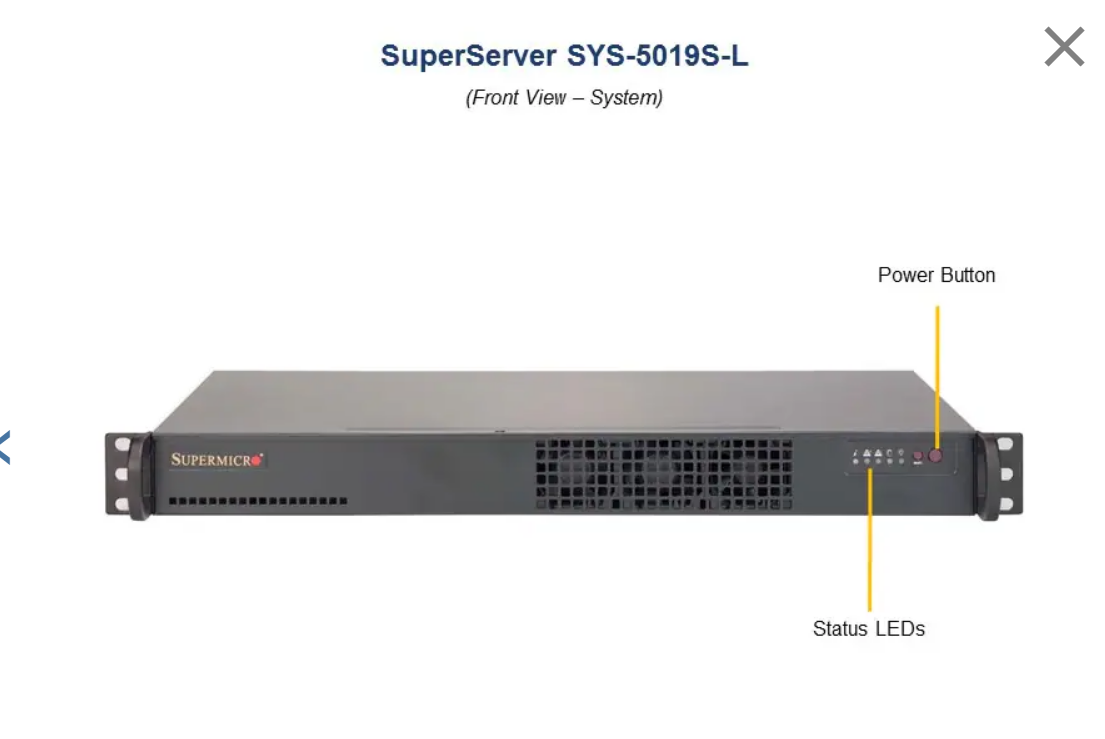

Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power LED Hard drive activity LED 2 Network activity LEDs System Information LED Information LED (temp., status)

Drive Bays

Fixed	1 3.5" or 2x 2.5" internal drive bays (fixed)

System Cooling

Fans	2x 40x28mm 4-pin PWM Cooling Fans 1x FAN-0147L4 option for 80W CPU

Power Supply

200W Low Noise AC-DC power supply with PFC
AC Voltage	100 - 240V, 50-60Hz, 2.6 Amp Max
+5V	8.0 Amp (max.)
+5V standby	2.0 Amp (max.)
+12V	16 Amp (max.)
-12V	0.5 Amp (max.)
+3.3V	8.0 Amp (max.)
Certification	Gold Certified

System BIOS

BIOS Type	8MB SPI Flash EEPROM with AMI BIOS

Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
