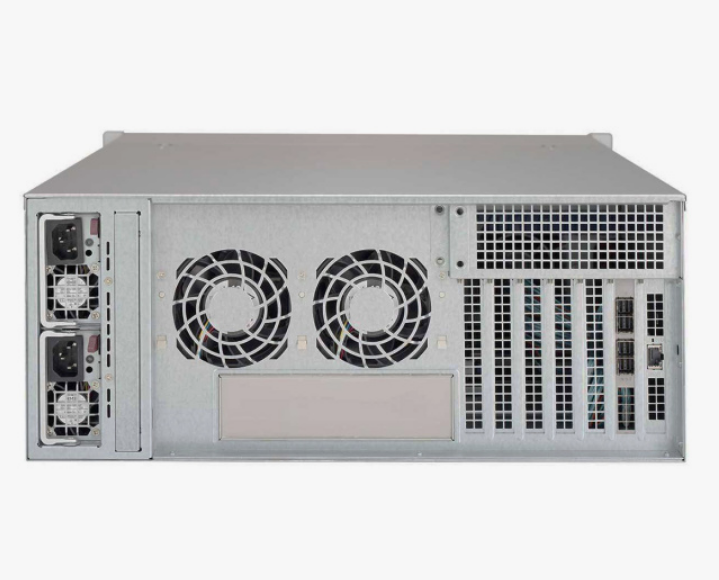

Корпус 4U Supermicro CSE-846E16-RxxxLPB
Артикул:
003355
Корпус 4U Supermicro CSE-846E16-RxxxLPB
Подробнее
Есть в наличии (2)
Нашли дешевле?
Под заказ
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Описание
Key Features
- High Performance SAS2/6GbS Expander
- High Efficiency PS and Storage Capacity
- 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX

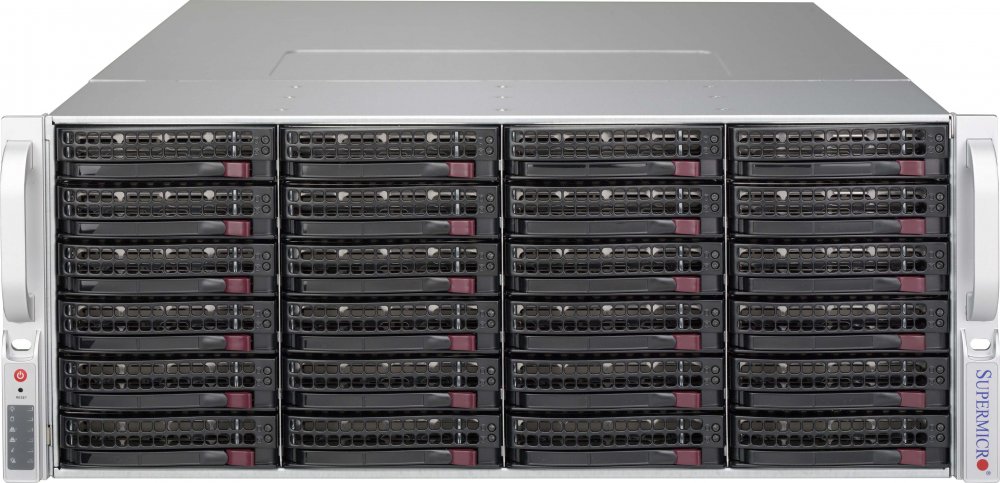

- 24 x 3.5" hot-swap drive bay
- SAS or enterprise SATA HDD only recommended
- 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
- 7 full-height & full-length expansion slot(s)
- 3 x 8cm hot-swap redundant PWM cooling fan(s)
- 2 x 8cm hot-swap exhaust fan(s) & air shroud
| Standard Parts List | |||
| Part Number | Qty | Description | |
| Air Shroud | MCP-310-49003-0N | 1 | SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB |
| Cable(s) | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
| Cable(s) | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| Cable(s) | CBL-0217L | 1 | 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF |
| Fan(s) | FAN-0125L4 | 2 | 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing |
| Fan(s) | FAN-0127L4 | 3 | 80x80x38 mm 7K RPM SC846 Middle Fan w/ Housing |
| Front Panel | MCP-280-82601-0N | 1 | Front control board adapter (TB826) for SC216,826,936,846 |
| Drive Tray(s) | MCP-220-00075-0B | 24 | Black gen 5.5 hot-swap 3.5"; HDD tray |
| Power Distributor | PDB-PT846-2824 | 1 | PDB with 23pairs input connector support SC846B |
| Power Supply & Accessory | PWS-1K28P-SQ | 2 | 1U 1280W, redundant single output power supply |
| Power Supply & Accessory | MCP-290-84604-0N | 1 | SC846 PDB Cover |
| Mounting Rail(s) | MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2"; W |
| Mounting Rail(s) | MCP-410-00007-0N | 1 | Rail screw bag |
| Rear Window | MCP-240-84602-0N | 1 | 846B rear window which support 2 X 2.5" HDD module and DVD |
| Optional Parts List | |||
| Part Number | Qty | Description | |
| Control Board | CSE-PTJBOD-CB2 | - | JBOD Storage Power-up Control Board |
| Short Rail | MCP-290-00058-0N | - | Redundant fan kit (including fans) |
| HDD Tray | MCP-220-84606-0N | - | Optional HDD kit for SC846BA/E16/E26 chassis only |
| Cable | CBL-0140L | - | 60cm 80-wire IDE DVD drive cable |
| Cable | CBL-0167L | - | SAS 846EL1 BP 1-Port Internal Cascading Cable |
| Cable | CBL-0168L | - | SAS 836EL2 BP 2-Port Internal Cascading Cable |
| Cable | CBL-0084L | - | Front control cable split converter 6" |
| Cable | CBL-0108L-02 | - | SFF 8087 to SFF 8087 Internal Backplane Cable, 39cm |
| Cable | CBL-0281L | - | SFF 8087 to SFF 8087 Internal Backplane Cable, 75cm |
| Cable | CBL-0143L | - | 1x 4pin to 1x SATA S-RA SATA power extension |
| Cable | CBL-0082L | - | 1x 4pin to 2x SATA S-RA SATA power extension |
| Cable | CBL-0231L | - | 70cm round S-RA SATA cable |
| Drive Trays | MCP-220-84601-0N | - | Single 3.5" Fixed HDD Tray (RA cables required) |
| Drive Trays | MCP-220-84603-0N | - | Dual 2.5" Fixed HDD Tray (including MCP-220-84601-0N) |
| Drive Trays | MCP-220-00043-0N | - | 3.5" convert to 2.5" HDD Tray |
| Peripheral Drive(s) | DVM-TEAC-824B | - | Black slim IDE DVD (8x DVD, 24x CDR), TEAC |
| Peripheral Drive(s) | DVM-PNSC-824(B) | - | Black slim IDE DVD (8x DVD, 24x CDR), Panasonic |
| Peripheral Drive(s) | DVM-TEAC-DVD-SBT3 | - | Black slim SATA DVD (8x DVD, 24x CDR), TEAC |
| Peripheral Drive(s) | DVM-PNSC-DVD-SBT3 | - | Black slim SATA DVD (8x DVD, 24x CDR), Panasonic |
| Peripheral Drive(s) | MCP-220-84607-0N | - | Rear side slim DVD kit for 846B chassis |
| Front Bezel | MCP-210-84601-0B | - | Front Bezel Cover, Black with Key Lock |
| Cable | CBL-0166L | - | SAS BP External Cascading Cable |
| Cable | CBL-0102L | - | I2C CABLE FOR SATA LED, 51CM, LF |
| Cable | CBL-0351L | - | Full Height Bracket. 85CM 1-PORT EXT IPASS TO INT IPASS |
| Cable | CBL-0352L | - | 85CM 2-PORT ETX IPASS TO INT IPASS FH |
| IO shield | MCP-260-00011-0N | - | I/O shield without any opening |
| RAID cards | AOC-USAS2-H4iR | - | 4 int/4 ext ports, supports 240 HDDs |
| RAID cards | AOC-USAS2LP-H8iR | - | 8 int ports, supports 240 HDDs |
| RAID cards | AOC-USAS2-S4i | - | 4 int/4 ext ports, supports 122 HDDs |
| RAID cards | AOC-USAS2-S4iR | - | 4 int/4 ext ports, supports 122 HDDs |
| RAID cards | AOC-USAS2-L8i | - | 8 int ports, supports 122 HDDs |
| RAID cards | AOC-USAS2-L4i | - | 4 int/4 ext ports, supports 63 HDDs |
| Adaptor HDD carrier | MCP-220-00043-0N | - | Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray |
