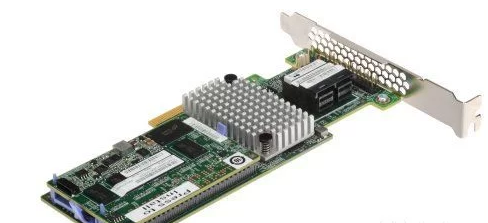

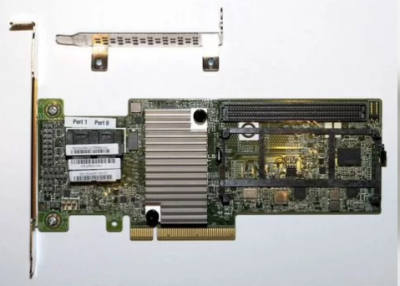

Контроллер Lenovo ServeRAID M5210-8i FRU 46C9111

Артикул: 000695

Контроллер Lenovo ServeRAID M5210 12G SAS Controller (FRU: 46C9111) SAS3108 RAID 0,1,5,10,50

Подробнее

Для физических лиц

15 525 ₽/шт

Для юридических лиц с НДС 5%

15 525 ₽/шт

Есть в наличии (1)

Нашли дешевле?

- +

В корзину

Рассчитать доставку

Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

Описание

Характеристики

Контроллер SAS RAID Lenovo M5210 (LSI Logic) LSISAS3108 0(2)Gb Int-2xSFF-8643 8xSAS/SATA RAID10(60) U1200 12G SAS LP PCI-E8x 3.0 For x3500M4 x3550M4 x3650M4 x3650M4HD x3650M5 nx360M5 x3500M5 x3550M5

Производитель	Lenovo
Партномер	46C9111

Support for Integrated MegaRAID (iMR) mode (no cache memory upgrades installed) or MegaRAID (MR) mode (requires 1 GB, 2 GB, or 4 GB cache memory upgrade).

iMR mode (no cache memory upgrades installed) supports:
- RAID 0, 1, and 10, and, optionally, 5 and 50
- Fixed stripe unit size of 64 KB
- Self-encrypting drives with optional Zero Cache/RAID 5 FoD upgrade
- Both RAID and JBOD (pass-thru mode with system drives) configurations
  - Up to 16 drives are supported in a RAID configuration.
  - Up to 63 drives are supported in a JBOD configuration. (JBOD drives can be used as bootable drives.)
MR mode (512 MB, 1 GB, or 2 GB cache memory upgrade required) supports:
- RAID 0, 1, 10, 5, and 50 and, optionally, 6 and 60 (Non-RAID is not supported.)
- Configurable stripe unit size from 64 KB up to 1 MB
- Self-encrypting drives
- Optional SSD performance features (FastPath and CacheCade)

PS:
- There's other way to flash controllers, bit its cumbersome: I also had success using IBM flash tool. IBM Flash Tool is actually written by LSI; you need to download and unzip downloaded exe file and inside you will find latest IBM firmware and replace IBM ROM with LSI ROM (you must keep the same name of the ROM file so that you don't need to modify config which is a weird TXT file). However using MSM was simpler so I didn't describe it.
